| ブランド名: | DLX |
| モデル番号: | 純粋なニッケル |
| MOQ: | 15KG |
| 支払い条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |

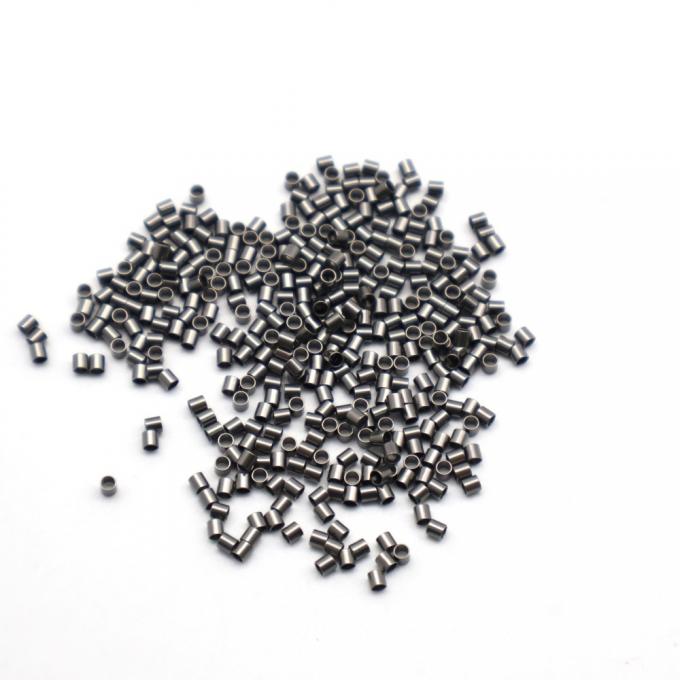

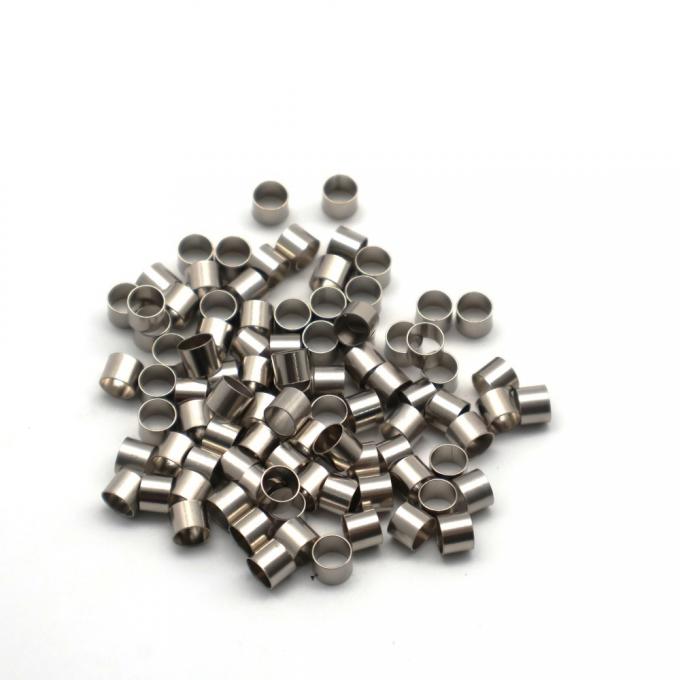

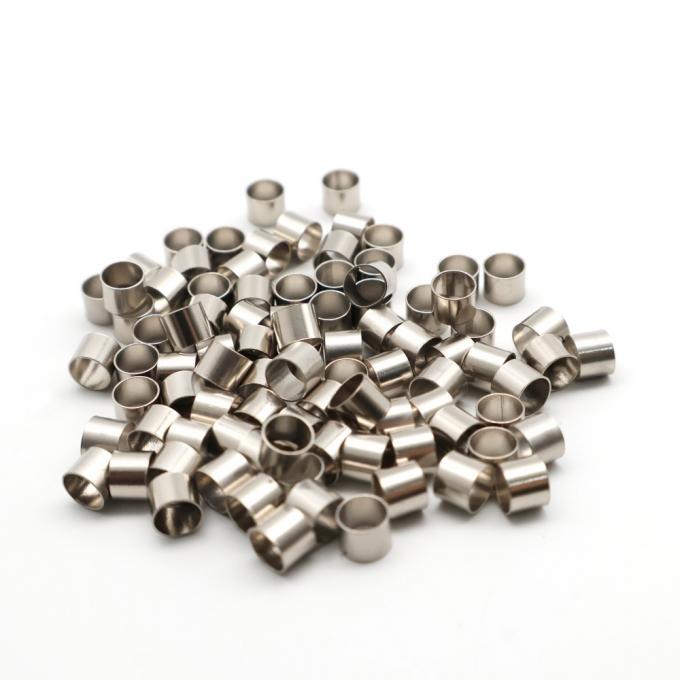

Our Custom-Cut Nickel Capillary Tubes are precision-engineered from high-purity nickel or nickel alloys to meet your exact specifications with a comprehensive range of OD/ID sizes. Designed for demanding specialized applications, these tubes deliver exceptional performance and reliability.
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
| Alloy | Ni+Co % | Mn % | Fe % | Si % | Cu % | C % | S % |
|---|---|---|---|---|---|---|---|
| Nickel 201 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.02 | Max 0.01 |
| Nickel 200 | Min 99 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
| Density | Specific Heat | Electrical Resistivity | Melting Point | Thermal Conductivity | Mean Coeff Thermal Expansion |
|---|---|---|---|---|---|
| 8.89g/cm³ | 0.109 (456 J/kg·℃) | 0.096*10⁻⁶ ohm·m | 1435-1446℃ | 70.2 W/m·K | 13.3*10⁻⁶ m/m·℃ |
These custom-cut capillary tubes offer complete customization for applications requiring precise diameters in medical devices, aerospace equipment, and specialized instrumentation. Their exceptional corrosion resistance withstands harsh environments including acids, saltwater, and chemicals, making them ideal for industries demanding uncompromising reliability.
The superior thermal conductivity enables efficient heat transfer in thermal management systems, while their mechanical strength ensures reliable performance in high-pressure applications. These tubes maintain structural integrity across extreme temperature ranges from cryogenic conditions up to 600°C, making them suitable for chemical processing, instrumentation, and advanced technological applications.
As industry trends increasingly demand precision components for medical technology, aerospace, and green energy projects, our Custom-Cut Nickel Capillary Tubes provide the exact fit and performance required by innovators. With the continued growth of specialized applications, we are positioned to deliver tailored solutions that meet evolving industry needs.
