Reliable 1Cr13Al4 Alloy Wire for Hydrogen Generation via Electrolysis

ブランド名:	DLX
モデル番号:	FeCrAl合金線1Cr13Al4
Moq:	10kg
支払条件:	L/C、D/P、D/A、T/T、Western Union
供給能力:	月産500トン

詳細情報

製品の説明

詳細情報

起源の場所:

中国、江蘇省

証明:

Ce,Rohs

供給の能力:

月産500トン

ハイライト:

1Cr13Al4 alloy resistance wire

hydrogen generation electrolysis wire

high-performance resistance wire for electrolysis

製品の説明

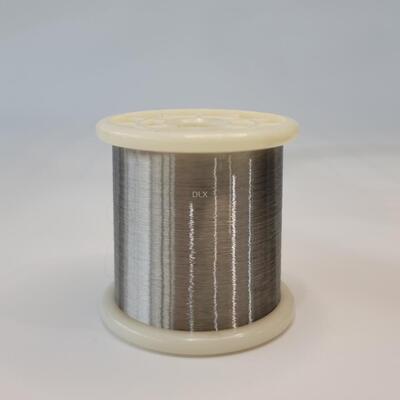

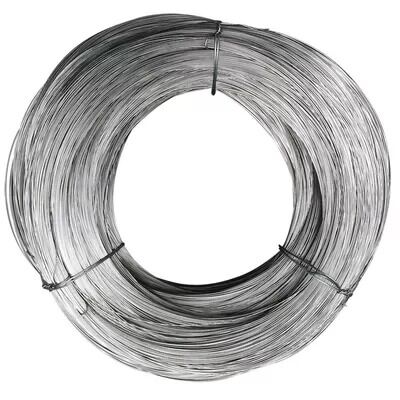

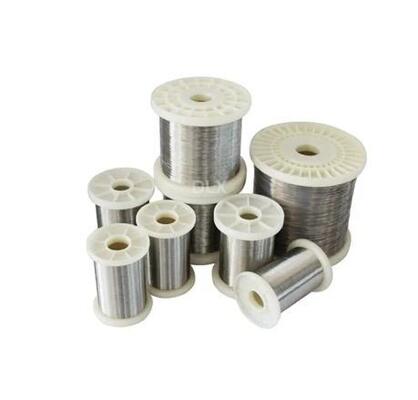

Reliable 1Cr13Al4 Alloy Wire for Hydrogen Generation via Electrolysis

1Cr13Al4 Alloy Wire is a specialized material primarily used in high-temperature applications such as electrolysis processes for hydrogen production. This alloy is composed of a mixture of chromium, aluminum, and iron, offering superior resistance to oxidation and corrosion. Thanks to its excellent thermal stability and electrical resistance properties, it has become a key component for advanced hydrogen generation technologies.

DLX's 1Cr13Al4 Alloy Wire is engineered to maximize efficiency and durability in electrolysis systems, making it the ideal choice for companies looking to enhance the sustainability and reliability of their hydrogen production systems. Whether you're looking to improve the lifespan of your equipment or boost your energy output, our alloy wire is a perfect match.

Parameter Comparison Table

Alloy Nomenclature Performance	1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Chemical Composition (%) - Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
Chemical Composition (%) - Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Chemical Composition (%) - Re	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune	Opportune
Chemical Composition (%) - Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
Max. Continuous Service Temp. of Element (°C)	950	1250	1250	1250	1100	1350	1400
Resistivity at 20°C (μΩ.m)	1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density (g/cm³)	7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity (KJ/m.h)	52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of Linear Expansion (αx10⁻⁶/℃)	15.4	16	14.7	15	13.5	16	16
Melting Point Approx (°C)	1450	1500	1500	1500	1500	1510	1520
Tensile Strength (N/mm²)	580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at Rupture (%)	>16	>12	>12	>12	>12	>12	>10
Variation of Area (%)	65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending Frequency (F/R)	>5	>5	>5	>5	>5	>5	>5
Hardness (H.B.)	200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time (Hours/°C)	--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥80/1350	≥80/1350
Micrographic Structure	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Properties	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Available Shapes and Sizes

Shape	Size (mm)
Wire	0.05-7.5
Rod	8-50
Ribbon	(0.05-0.35)*(0.5-6.0)
Strip	(0.5-2.5)*(5-180)

Key Features

Corrosion Resistance: With its high chromium content, the 1Cr13Al4 Alloy Wire offers excellent resistance to oxidation and corrosion, especially in high-temperature electrolytic environments.
Superior Electrical Resistance: The wire's optimal electrical resistance makes it ideal for use in electrolysis processes, where precise and stable electrical conduction is critical.
Enhanced Durability: The combination of chromium and aluminum ensures that this alloy can withstand extreme temperatures and harsh operational conditions, making it a reliable choice for long-term use.
Customizable Dimensions: Available in a variety of diameters and lengths, this alloy wire can be tailored to fit the specific needs of your hydrogen generation system.
Efficient Heat Management: The high thermal conductivity of the alloy helps maintain a stable temperature, improving the overall efficiency of electrolysis.

Advantages of Using DLX's 1Cr13Al4 Alloy Wire

Proven Quality: DLX has established itself as a trusted name in the alloy trade, offering high-quality materials that meet or exceed industry standards.
Cost-Effective: While ensuring durability and reliability, DLX's alloy wire provides excellent value for money, helping businesses optimize operational costs.
Long-Term Reliability: Thanks to its superior oxidation and corrosion resistance, our alloy wire offers extended service life, reducing the need for frequent replacements.
Technical Support: Our experienced team is always available to provide expert guidance on product selection and application, ensuring optimal performance for your electrolysis systems.

Industry Analysis

The demand for hydrogen, especially produced through electrolysis, is expected to rise significantly in the coming years. This is largely driven by the global push towards clean energy solutions, including the decarbonization of industries, power generation, and transportation. Electrolysis offers a way to produce hydrogen without relying on fossil fuels, making it an attractive alternative to traditional methods.

As the demand for hydrogen grows, the efficiency of electrolysis systems becomes increasingly important. Materials that can withstand the high temperatures and aggressive conditions found in electrolysis cells are in high demand. 1Cr13Al4 Alloy Wire is designed to meet these needs, offering an ideal balance of performance, durability, and cost-efficiency.

Applications

Hydrogen Production: The wire is a crucial component in electrolysis systems used for green hydrogen generation. It facilitates the conversion of water into hydrogen gas through an electric current.
Fuel Cells: The alloy wire can also be used in fuel cell technology, which relies on hydrogen as a fuel source for generating electricity.
Heat Exchangers: Due to its excellent thermal resistance, 1Cr13Al4 Alloy Wire is also suitable for use in high-temperature heat exchangers in various industrial applications.
Industrial Furnaces: The wire's high melting point and resistance to oxidation make it a valuable material in industrial furnace applications.

DLX's Competitive Advantage

DLX Corporation has built a reputation for providing reliable, high-performance materials that support the cutting-edge technologies of today's energy transition. When you choose DLX, you are selecting a partner who is committed to innovation, quality, and customer satisfaction. Here's why DLX stands out:

Experienced Team: With years of expertise in the alloy trade, DLX has the knowledge and experience to provide customized solutions that perfectly match your needs.
Rigorous Quality Control: Every batch of our 1Cr13Al4 Alloy Wire undergoes extensive testing to ensure it meets the highest standards of quality and performance.
Sustainability Commitment: DLX is dedicated to promoting environmentally friendly solutions. Our products are designed to support the global transition towards clean, renewable energy sources like hydrogen.

Frequently Asked Questions

What is the composition of the 1Cr13Al4 Alloy Wire?

The alloy consists primarily of iron, chromium (13%), and aluminum (4%), offering high corrosion resistance and thermal stability.

How is this wire used in electrolysis for hydrogen production?

The wire acts as an electrode in electrolysis systems, facilitating the efficient conversion of water into hydrogen gas when an electrical current passes through it.

What are the temperature limits of the wire?

The wire can withstand temperatures up to 1,450°C, making it suitable for high-temperature applications like electrolysis.

Can this alloy wire be used for other industrial applications?

Yes, it is also used in fuel cells, industrial furnaces, and heat exchangers due to its excellent thermal and corrosion resistance.

What makes DLX's wire superior to competitors?

DLX's wire is designed for maximum durability, with rigorous quality control processes in place. Our alloy wire is also cost-effective and offers long-term reliability.

Is the wire customizable?

Yes, DLX provides customizable wire diameters and lengths to meet the specific requirements of your systems.

How does the wire perform in high humidity environments?

The wire is highly resistant to oxidation, making it ideal for use in environments with high humidity or other harsh conditions.

What are the industry trends for hydrogen production via electrolysis?

As global demand for clean energy grows, hydrogen production is expected to increase, with electrolysis being a key method due to its sustainability and efficiency.
